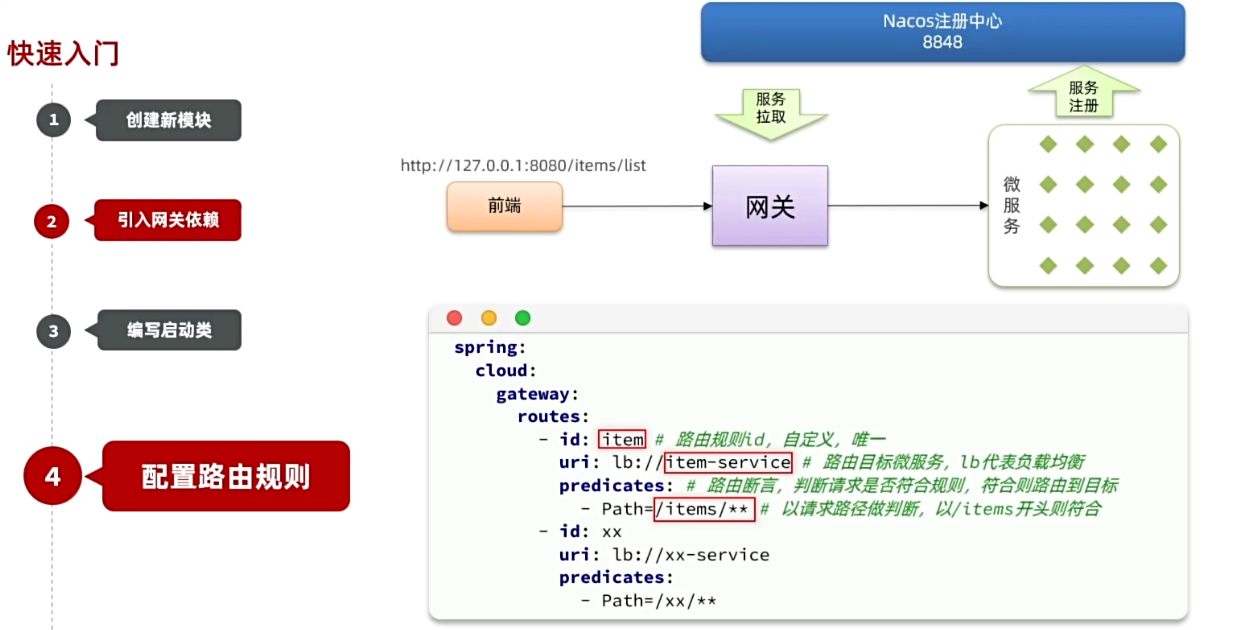

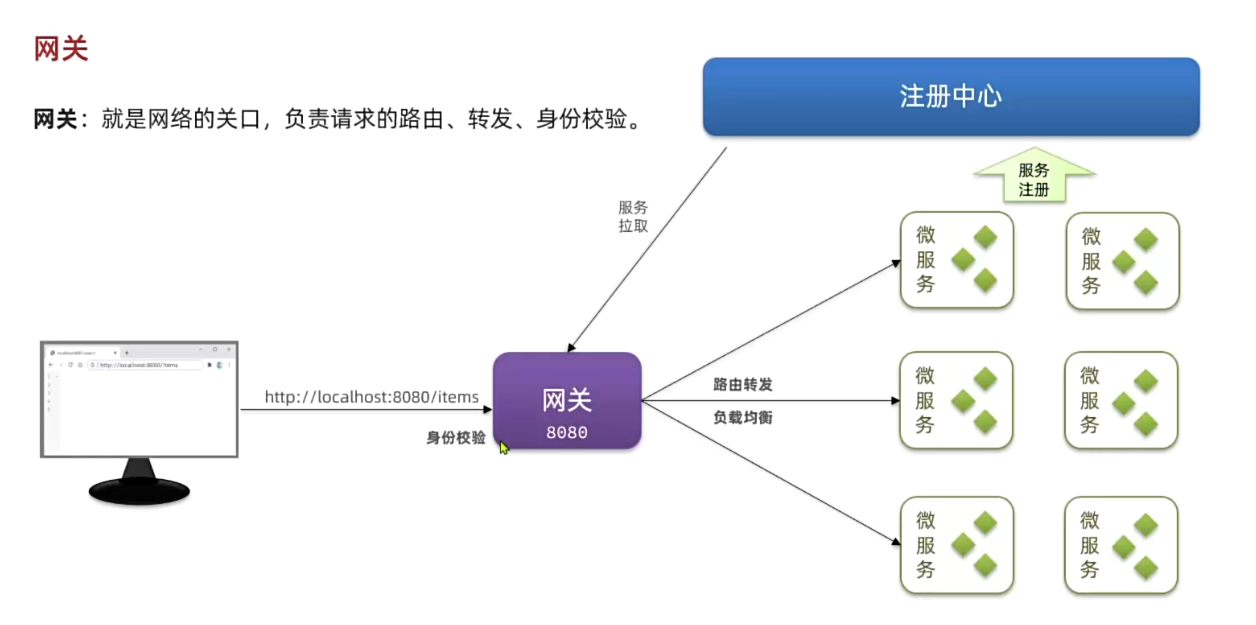

Spring Cloud Gateway 网关

<!--网关--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-gateway</artifactId> </dependency> <!--nacos discovery--> <dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId> </dependency>

server:
  port: 8080

spring:
  application:
    name: gateway
  cloud:
    nacos:
      discovery:
        server-addr: 192.168.87.133:8848
    gateway:
      routes:
        - id: item-service
          uri: lb://item-service
          predicates:
            - Path=/items/**,/search/**
        - id: cart
          uri: lb://cart-service
          predicates:
            - Path=/carts/**
        - id: user
          uri: lb://user-service
          predicates:
            - Path=/users/**,/addresses/**
        - id: trade
          uri: lb://trade-service
          predicates:
            - Path=/orders/**
        - id: pay
          uri: lb://pay-service
          predicates:
            - Path=/pay-orders/**
      default-filters:
        - AddRequestHeader=truth, blue

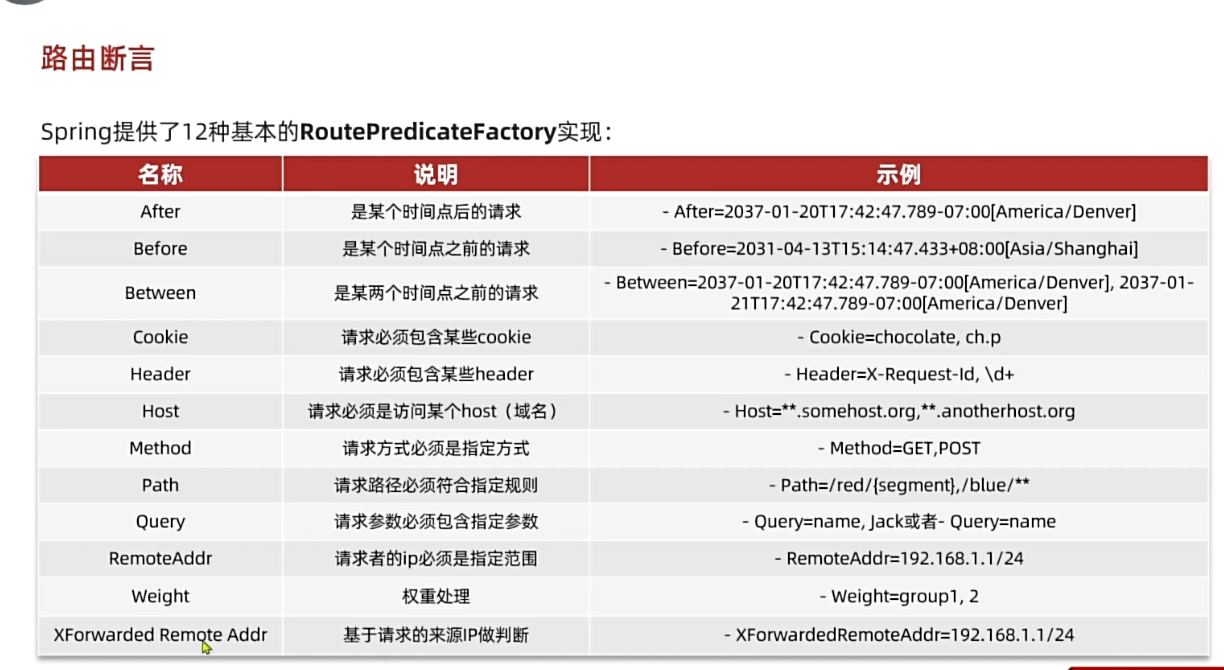

路由断言

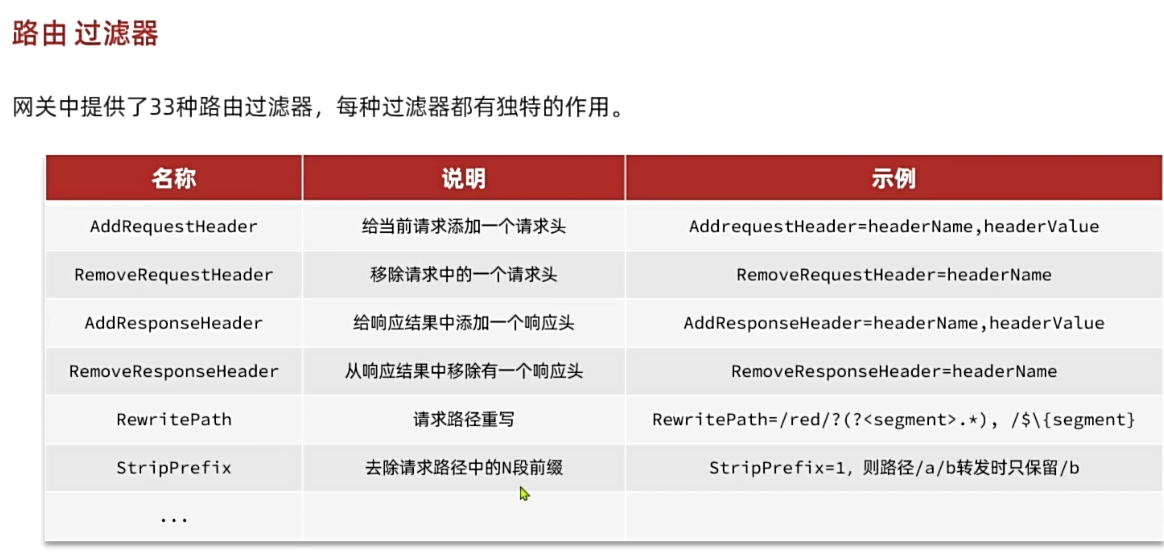

路由过滤

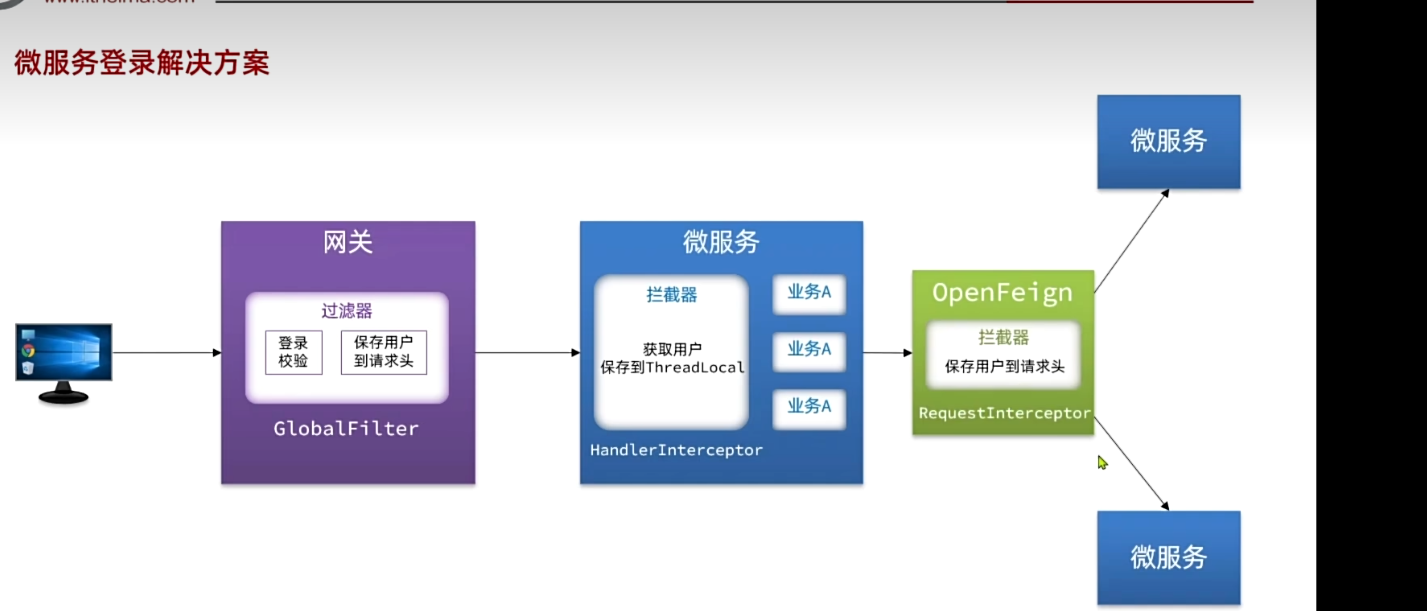

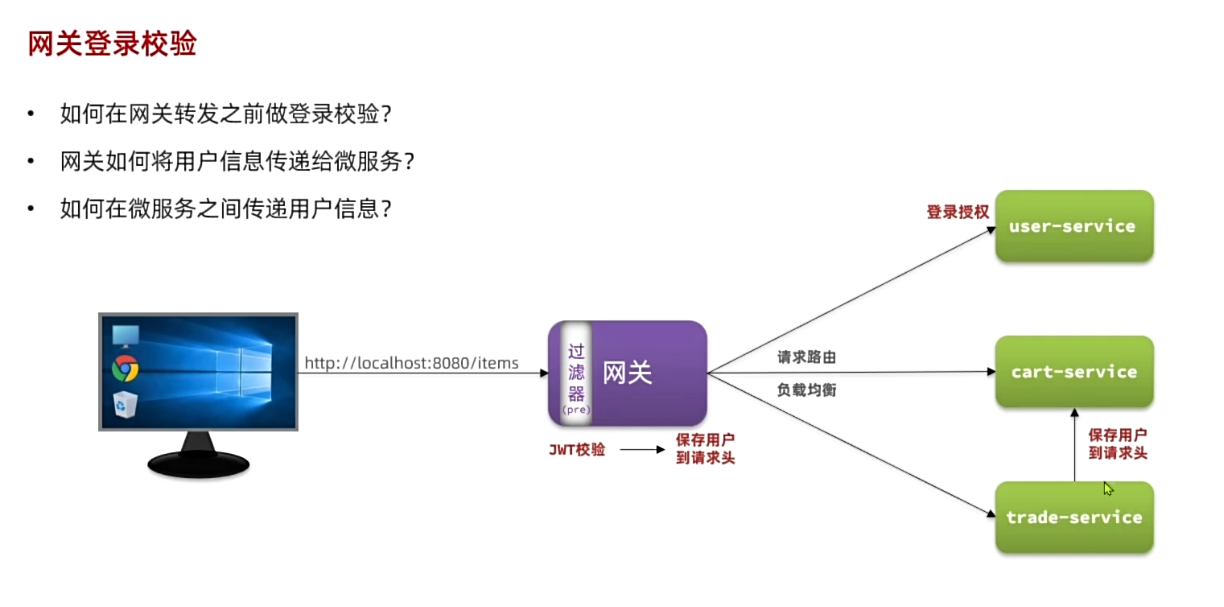

登录实现

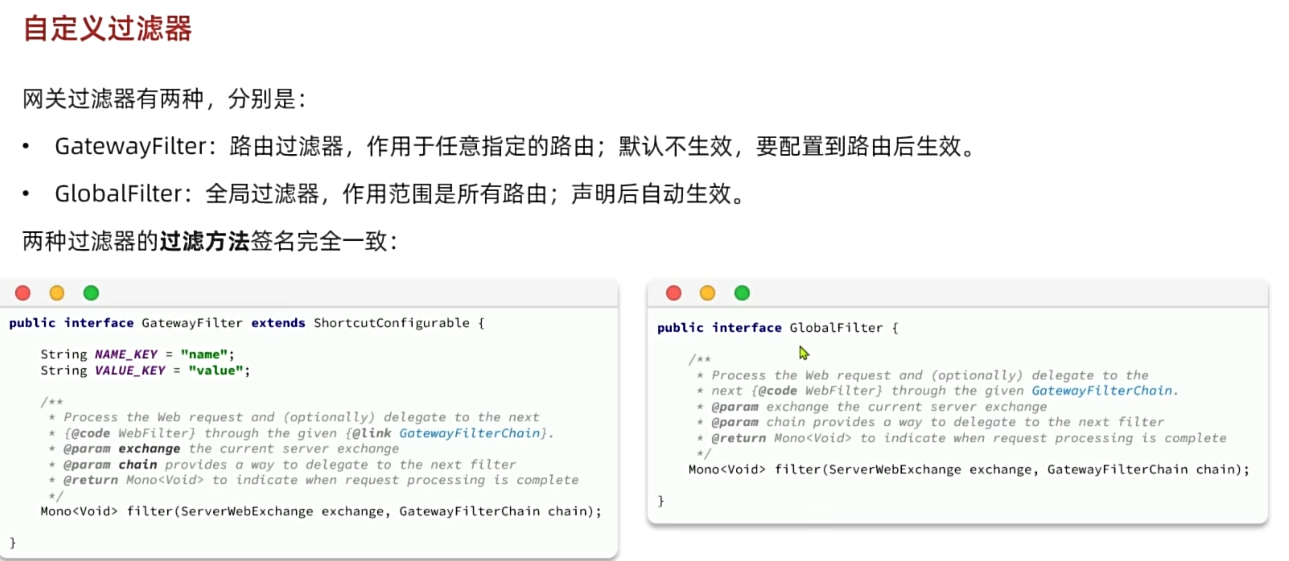

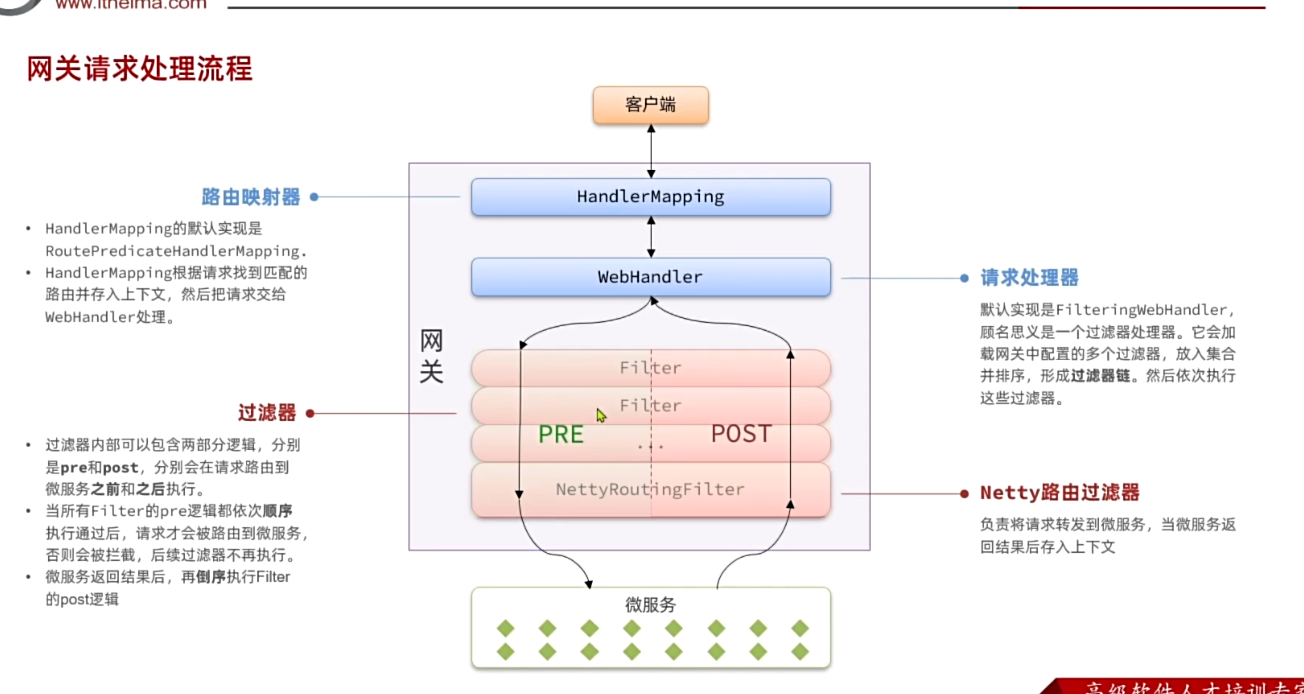

自定义过滤器

nettyRouting 优先级默认是最小的, 因此指定一个较大的数即可

package com.hmall.gateway.filters;

import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.http.HttpHeaders;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

@Component
public class MyGlobalFilter implements GlobalFilter , Ordered {

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        // TODO 模拟登录检验
        ServerHttpRequest request = exchange.getRequest();
        HttpHeaders headers = request.getHeaders();
        System.out.println(headers);
        return chain.filter(exchange);
    }

    @Override
    public int getOrder() {
        return 0;
    }
}

实现

网关

这里没有进行传递用户

package com.hmall.gateway.filters;

import cn.hutool.core.text.AntPathMatcher;
import com.hmall.common.exception.UnauthorizedException;
import com.hmall.gateway.config.AuthProperties;
import com.hmall.gateway.utils.JwtTool;
import lombok.RequiredArgsConstructor;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.RequestPath;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import java.util.List;

@RequiredArgsConstructor
@Component
public class AuthGlobalFilter implements GlobalFilter, Ordered {

    private final AuthProperties authProperties;

    private final JwtTool jwtTool;

    private final AntPathMatcher antPathMatcher = new AntPathMatcher();
    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        // 1. 获取request对象
        ServerHttpRequest request = exchange.getRequest();
        // 2. 判断是否需要做登录拦截
        List<String> excludePaths = authProperties.getExcludePaths();
        RequestPath path = request.getPath();
        if(isExclude(path.toString(),excludePaths)){
            // 放行
            return chain.filter(exchange);
        }
        // 3. 获取token
        String token = null;
        List<String> tokens = request.getHeaders().get("authorization");
        if(tokens!=null&&!tokens.isEmpty()){
            token = tokens.get(0);
        }

        Long userId = null;
        // 4. 校验解析token, 获取用户信息
        try {
            userId = jwtTool.parseToken(token);
        } catch (UnauthorizedException e) {
            // 401 表示未登录
            exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);
            Mono<Void> voidMono = exchange.getResponse().setComplete();
            return  voidMono;
        }
        // 5. 保存用户信息到请求头
        System.out.println("userId = "+userId);
        return chain.filter(exchange);
    }

    private boolean isExclude(String path, List<String> excludePaths) {
        for (String excludePatten : excludePaths) {
           if(antPathMatcher.match(excludePatten, path)){
               return true;
           }

        }
        return false;
    }

    @Override
    public int getOrder() {
        return 0;
    }
}

网关到微服务

因为微服务都引用了 common 包, 因此将拦截器放到 common 中

public class UserInfoInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        // 1. 获取登录信息
        String userInfo = request.getHeader("user-info");
        // 2. 判断是否获取了用户
        if(StrUtil.isNotBlank(userInfo)){
            // 3. 存入 threadLocal            UserContext.setUser(Long.valueOf(userInfo));
        }
        // 4. 放行
        return HandlerInterceptor.super.preHandle(request, response, handler);
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        // 清理用户

        UserContext.removeUser();
        HandlerInterceptor.super.afterCompletion(request, response, handler, ex);
    }
}

@Configuration
public class MvcConfig implements WebMvcConfigurer {
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new UserInfoInterceptor());
    }
}

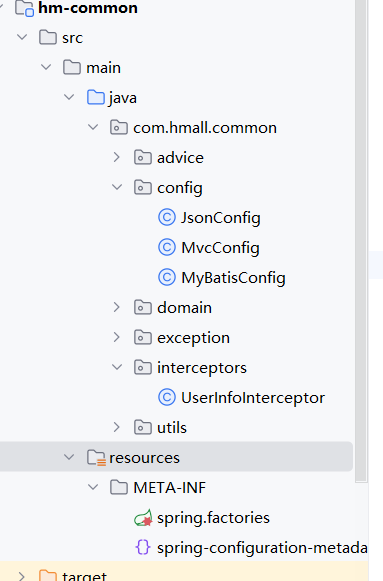

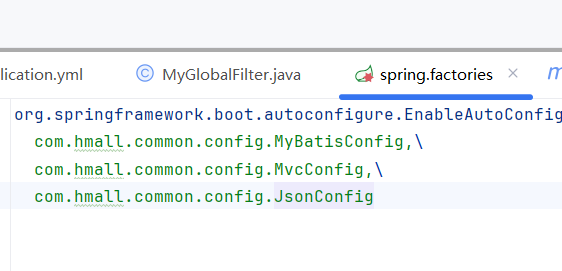

因为 common 包不会被微服务包扫描, 因此 @Configuration 不会生效, 因此

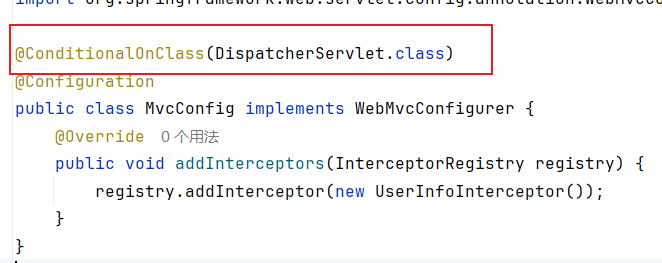

网关引入配置类后报错, 因为网关不是 springBoot , 因此设置自定配置类的生效条件

微服务到微服务

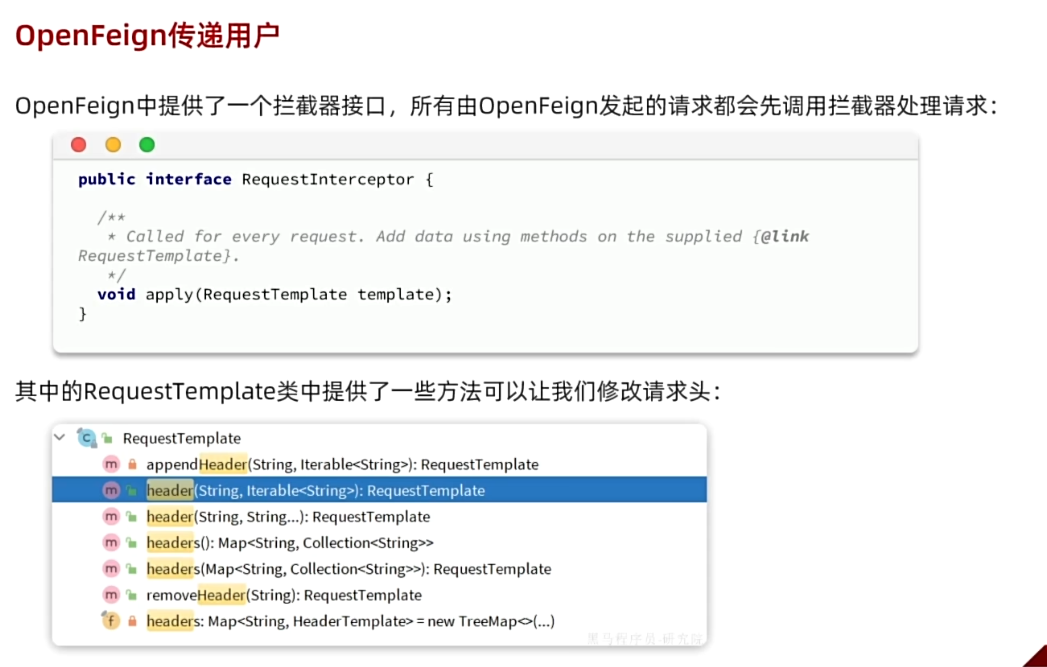

是由 openFeign 发起的

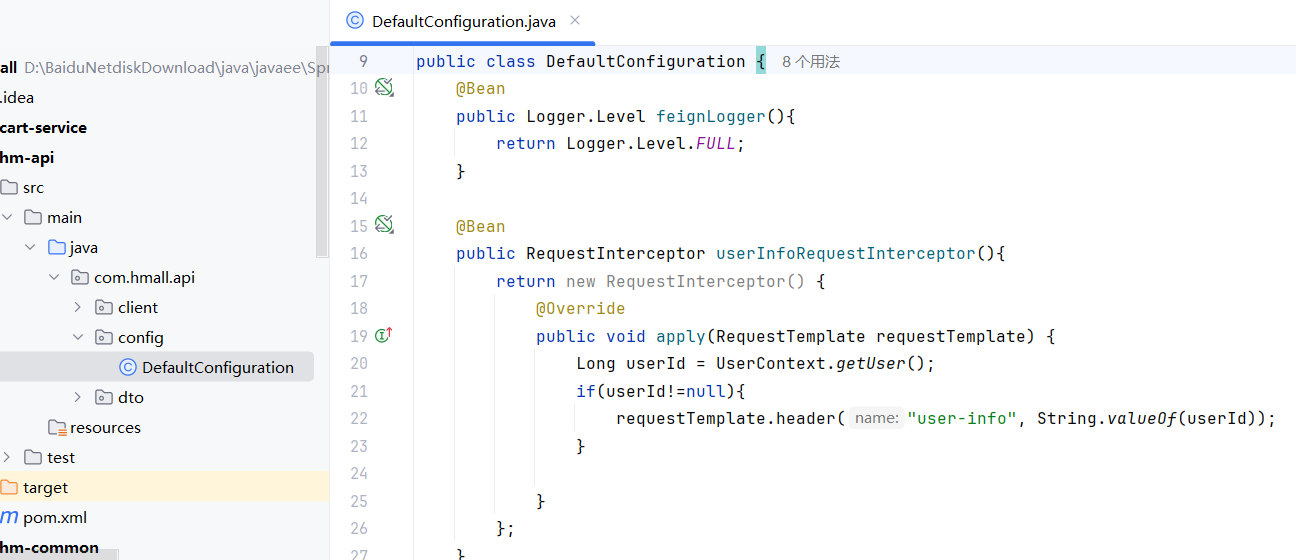

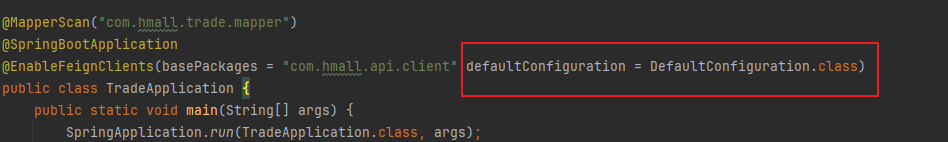

使 feign 配置类生效
